96L Industrial Ultrasonic Bath
Function:
Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt
Features:
Dirt and oil could be removed in a short time by using the strong cavitation of ultrasound.
Time is adjustable among 1 second to 500 hours by simple handle of large timer.
Additional special case for small parts cleaning and drainage for changing of cleaning solution.
Automatic stopwatch to manage working time and maintenance time.
Standard residual-current circuit breaker: used for testing leakage power. And keeping moving of machine and cutting of power switch.
Specificatoin:
| Model | JP-301ST |
| Ultrasonic power | 1500W (30pcs transducers) |
| Frequency | 40KHz / 28KHz |
| Housing material | SUS304 |
| Tank material | SUS304 / 316 |
| Heating power | 4500W |
| Tank capacity | 96L |
| Timer | Digital 1-99 min adjustable |
| Heater | 0~80℃ |
| Voltage | AC 100~120V, 60Hz
AC 220~240V, 50Hz |
| Tank size | 800*300*400 mm |
| Unit size | 1050*500*795 mm |
| Packing size | Wooden case |
| N.W. | 87 Kg |
| G.W. | 92 Kg |
| Certificate | ISO9001:2008|CE & RoHS |
From 10 galles to 200 gallons ,size could be customized

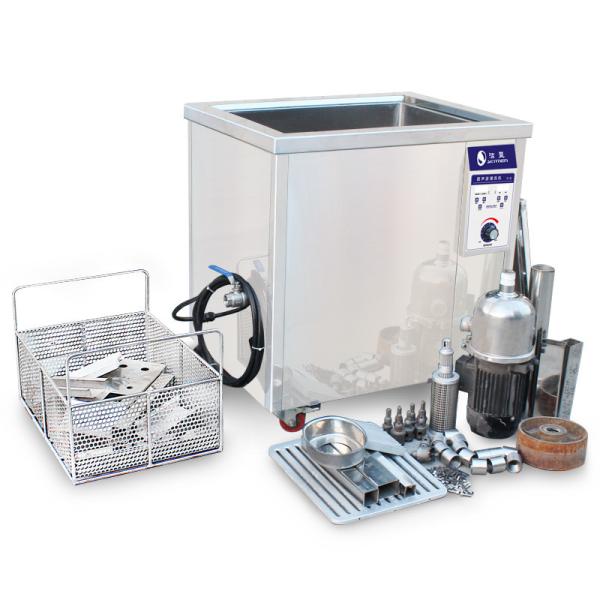

Images of this model:
The whole set machine including:
1* cleaning machine
1* lid
1* basket
Similar models with different tank volume:
| Model | Tank size | Volume | Ultrasonic
Power | Heating
Power | Transducer |
| L*W*H (mm) | (L) | (W) | (W) | (pcs) |
| JP-120ST | 500X300X250 | 38L | 600W | 1500W | 12pcs |
| JP-180ST | 500X350X300 | 53L | 900W | 1500W | 18pcs |
| JP-240ST | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
| JP-300ST | 550X450X400 | 99L | 1500W | 4500W | 30pcs |
| JP-301ST | 800X300X400 | 96L | 1500W | 4500W | 30pcs |
| JP-360ST | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
| JP-480ST | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
| JP-600ST | 800X600X550 | 246L | 3000W | 6000W | 60pcs |
| JP-720ST | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
| JP-1108ST | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
| JP-1144ST | 1200X1000X800 | 960L | 7200W | 27000W | 144pcs |
How does Ultrasonic Cleaner work?
How to use an ultrasonic cleaner ?
Cleaning prior to lacquering
Ultrasonic clean 130° F, 2 to 3 minutes, 38 to 40 kHz sweep, 300 Hz sweep rate
Chemistry, Brulin 815GD, 12 ounces per gallon of water
Spray rinse with de-ionized* water to remove gross detergent
Immersion rinse in flowing warm de-ionized* water (30 seconds)
Spray rinse with de-ionized* water (final rinse)
Blow dry with clean compressed air or dry nitrogen
Cleaning to remove calcium buildup (replaces "chem-clean")
Ultrasonic clean <110° F, 2 to 3 minutes, 38 to 40 kHz sweep, 300 Hz sweep rate
Chemistry, Ultra-power 132, 1 to 1½ ounces per gallon of water
Spray rinse with de-ionized* water to remove gross detergent
Immersion rinse in flowing warm de-ionized* water (30 seconds)
Spray rinse with de-ionized* water (final rinse)
Blow dry with clean compressed air or dry nitrogen
Package by polywooden case:
Before and after :
